Elli-μSE_OCD

페이지 정보

본문

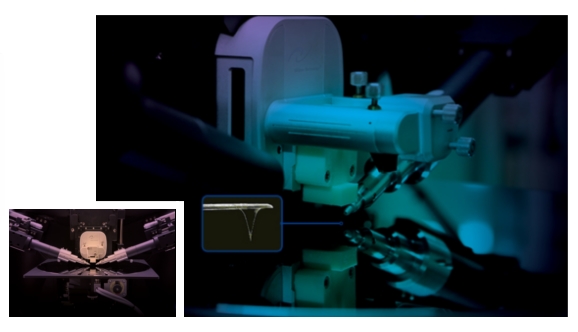

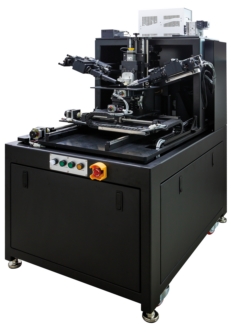

2fffb25bb757c09d1feb3b9ed5b81c12_1641269781_3402.jpg2fffb25bb757c09d1feb3b9ed5b81c12_1641269784_6452.jpg
Micro-spot Spectroscopic Ellipsometer for Semiconductor OCD Application : Ellipso Technology has recently developed a spectroscopic

ellipsometer with the world's best spot size. AFM or NNISE can be mounted on this Elli-μSE_OCD and operated simultaneously.

This micro-spot Spectroscopy Ellipsometer equipped with the mapping module and the variable angle-of-incidence module for

improved measurement precision, is well suited for OCD measurement in semiconductor processes.




◈ Performance / System


Measurement mode

Rotating Compensator Ellipsometer (RCE)

Wavelength range

190 ~ 850 nm

Measurement speed

~ 3 s/sp

Spot size

≦20 μm

Measurement repeatability

δ△=0.05°, δψ=0.02°

Variable angle of incidence

Automatic : 65˚~ 80˚, 0.1˚

Sample alignment

Automatic adjustment of height and azimuthal angle,

Manual tilt adjustment

Mapping

Automatic (X,Y,θ) control

: 300 mm wafer

Matching equipment

AFM or NNISE

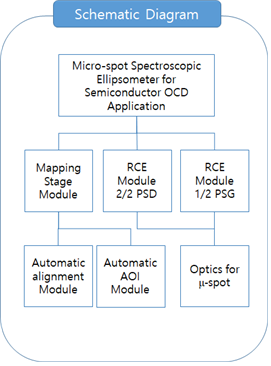

◈ Schematic Diagram




◈ Application

    - Semiconductor : OCD(of HAR) structure, Dielectrics

    - Display : OLED, Dielectrics




▣ Supported by : KIAT(Korea Institute for Advancement of Technology)
